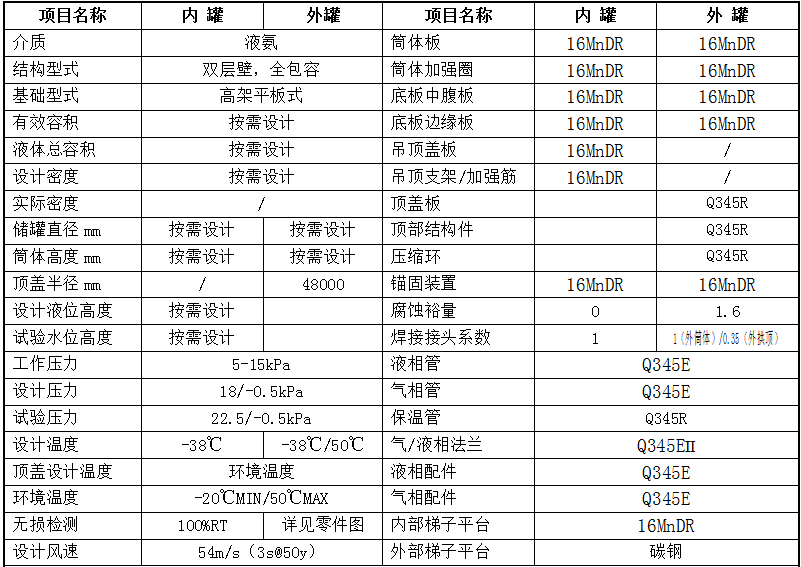

Technical parameters of large liquid ammonia low temperature full capacity tank
Large liquid ammonia low-temperature full capacity tank is stored in the inner tank (main container) of the full capacity tank, and the outer tank (secondary container) is used to contain evaporated gas and cold insulation materials. When the inner tank leaks, the outer tank can effectively store part of liquid ammonia liquid. The inner and outer tanks are flat bottomed and cylindrical metal tanks. The inner tank top is of suspended ceiling type and is suspended on the outer tank vault support structure through suspenders. The outer tank top is a spherical vault and the top support structure is a ribbed annular grid. The foundation of liquid ammonia storage tank adopts concrete elevated bearing platform structure.
Note:
1. The technical parameters of the above equipment shall be subject to the final design.
2. the insulation of the equipment adopts pearlescent sand + elastic felt + foam glass brick + insulation cotton compound cold preservation.
